Assembler UI - Creation

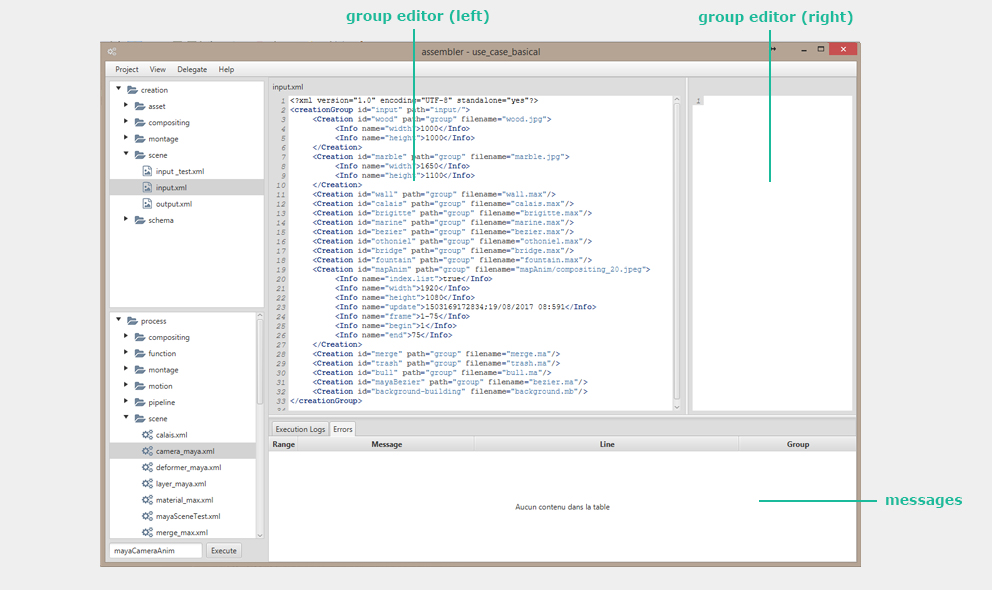

Edit Creation Group

The user edits the Creation Group like a text, respecting the XML syntax and the Assembler Specifications.
So, the user can:
  • Insert, Select, Delete characters and text block
  • Copy & Past any text block (Ctrl+C & Ctrl+V use)
  • Especially Copy & Past the text block from Use Cases

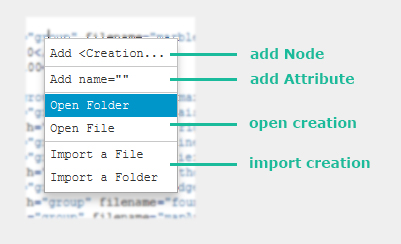

The user can use the contextual menu to Add a NodeAdd an AttributeOpen FolderOpen FileImport a FolderImport a File

Add Node | Contextual Menu

 To add a Node:
  • In the group editor, click-left on the line to add the Node.
  • Click-right to open the contextual menu and select "Add <Node ..."

Add Attribute | Contextual Menu

 To add an Attribute:
  • In the group editor, click-left on the Node line to add the Attribute.
  • Click-right to open the contextual menu and select "Add attr="

Open Folder | Contextual Menu

Open File | Contextual Menu

 Open the selected creation file in the associated application.

Import a File | Contextual Menu

 To import a file into a creation:
  • In the group editor, Right-click and select "Import a File" in the conextual menu.
  • In the file explorer, select the file to import.
  • In the dialog box, fill the creationId.
  • Click on "Import" button.

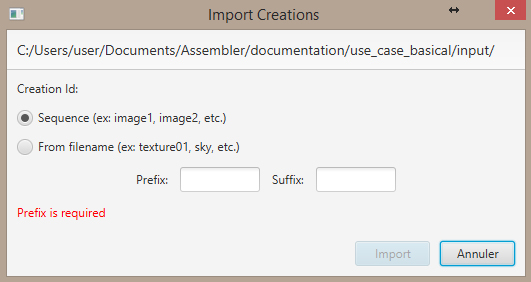

Import a Folder | Contextual Menu

 Import into a creation list the files contained in a selected folder:
  • In the group editor, Right-click and select "Import a Folder" in the conextual menu.
  • In the file explorer, select the folder to import.
  • In the dialog box, cloice Sequence or From filename to generate the creationId.
  • If requiered (sequence), fill the Prefix
  • Optionnally, fill the Suffix
  • Click on "Import" button.

Format | Ctrl+F

 Format the group indentation.
